How to vectorize an image in Illustrator

There's more than one way to vectorize an image using design software like Adobe Illustrator and Linearity Curve.

In Illustrator, you can turn a raster image into a vector with the Image Trace feature.

In this post, we'll explore the difference between raster and vector graphics files and go through the steps of the image vectorization process. Let's get started.

What's the difference between a raster image and scalable vector graphics?

There are two main image types that digital creatives work with—raster and vector.

Raster graphics are images saved in Bitmap image file formats, such as .jpg and .png. Bitmap graphics comprise a grid of pixels—those tiny blocks on your screen that hold color information.

Standard raster image formats include:

• Joint Photographic Experts Group (.jpeg or .jpg)
• Graphics Interchange Format (.gif)
• Portable Network Graphics (.png)
• Tag Image File Format (.tiff)

Vector graphics, on the other hand, are composed of shapes and lines determined by mathematical formulas. This means that vector image formats are infinitely scalable without losing image quality.

Standard vector image formats include:

• Scalable Vector Graphics (.svg)
• Encapsulated PostScript (.eps)
• Portable Document Format (.pdf)
• Adobe Illustrator (.ai)

It's important to note that vector file formats can also contain raster graphics (like photos), but these raster images will lose their quality as you scale your entire vector design.

In raster graphics, file size often determines quality: larger files can contain more colored pixels and information. However, large image sizes can become cumbersome when sharing designs.

One of the ways you can mitigate image quality loss is to turn your raster images into vector paths using vector graphics software.

In the step-by-step tutorial below, we'll show you how to vectorize a picture of a whale into a vector drawing using Illustrator.

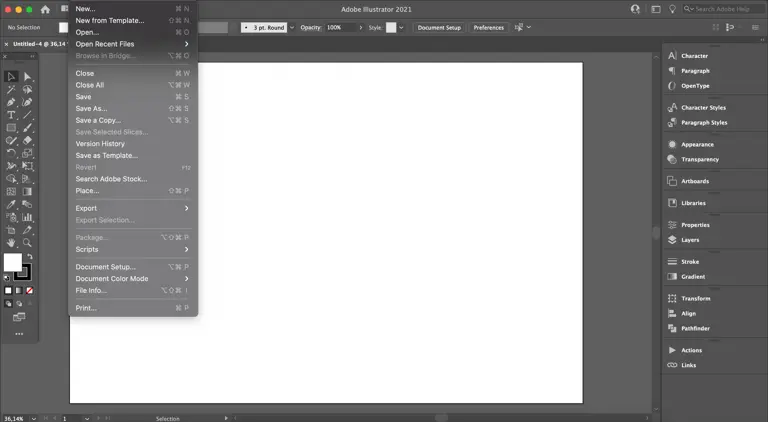

Create a new document in Adobe Illustrator

First, you'll need to create a new document in Illustrator. To do this, go to File > New.

Ideally, you should create a new document with an Artboard with the exact dimensions of the image you intend to vectorize, but this isn't necessary.

Import your original image into Illustrator

Next, import your raster image file into Illustrator by going to File > Place. Then, you'll need to use the Anchor Point controls to resize your image to the size you want.

Vectorize your image with Image Trace

The next step is vectorizing your image. Select your image, then open the Object menu item. Select Image Trace > Make.

Alternatively, depending on which version of Illustrator you have, the Image Trace option might appear at the screen's top or right-hand side when your image is selected.

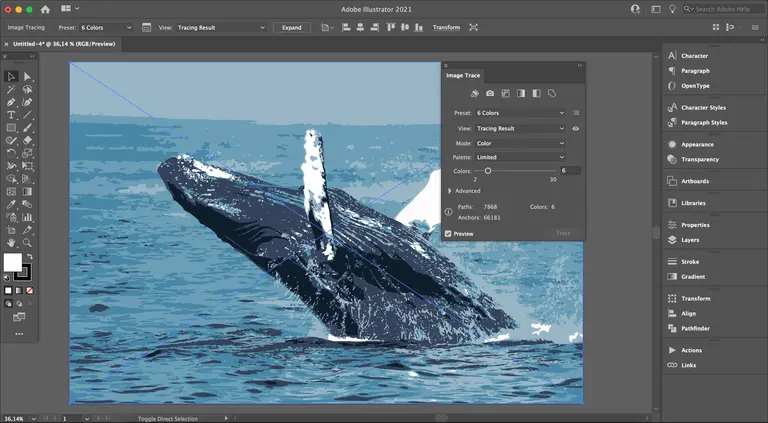

Adjust the Image Trace Settings

Next, decide which preset option to use to create your vector image.

You can choose the number of colors you want in your final image, including 3-color, 16-color, and high- and low-fidelity photos.

There is also the Grayscale option, which uses only shades of gray for your image.

You can choose the Silhouette option to turn your photo into a black-and-white vector image. The colors of your vector will depend on the option you pick.

Once you click on an option, the vector tracing will begin immediately but might take a few seconds to complete.

To turn your photo into a black-and-white vector image, you can choose the Silhouette option. The colors of your vector will depend on the option you pick.

Fine-tune your Image Trace

The next step is to fine-tune your vectorized image. There are several options to do this.

With the Image Trace panel window still open, you can access various tracing options to tweak your design. If you toggle open the Advanced options, you can alter the number of paths, corners, and various Stroke and Fill options.

Expand your Image Trace

Once you're happy with how the Preview looks, click Expand. This will finalize the image trace and transform your raster image into editable vector shapes.

Edit your vector image file

Next, you may want to edit your vector image. It'll appear as a collection of different vector shapes in many colors. These shapes will initially be Grouped.

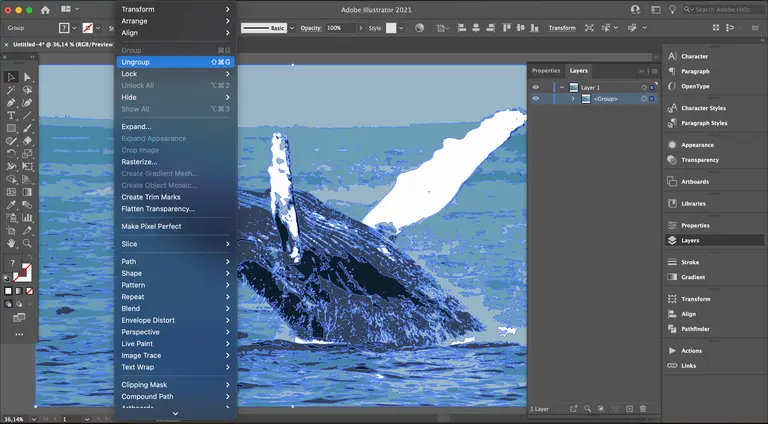

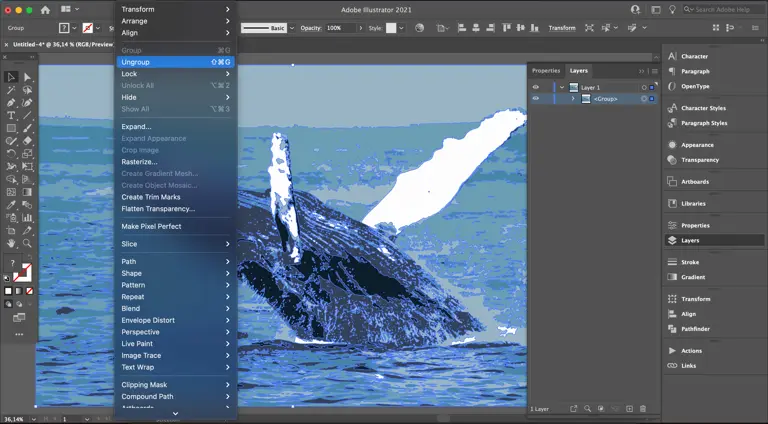

To make individual changes to these shapes, you'll need to Ungroup them first. To do this, choose the Selection tool (V on your keyboard) and click on your image. Then, right-click to open the quick options menu and select Ungroup.

Another way to do this is to go to Object > Ungroup in the main menu or simply press ⌘ + Shift + G on your keyboard.

Save and export your vector file

It's time to save your new vector project once you've adjusted your vectorized image to your satisfaction using presets, tracing options, and tools.

Go to the File drop-down menu and choose Save. You can press ⌘ + S on your keyboard anytime to save your progress.

Then, you can use the File > Export feature to save your vector image using the desired vector file type.

Let's look at how to do the same vector tracing process faster with Linearity Curve, our progressive design software for digital creatives.

How to vectorize your image faster next time using Linearity Curve

Adobe Illustrator is good at transforming raster images into vector images but has some issues. First, it's an expensive platform, which puts it out of reach for many people.

Second, it's complicated, and navigating the intricate details of its image-tracing process can be very time-consuming.

Linearity Curve is a vector graphic design platform for Mac, iPad, and iOS. It has a powerful Auto Trace tool that can transform images from raster pixels into vector shapes with fewer clicks. With Curve, the process is much simpler.

Create a new document in Linearity Curve

Open your raster image as a new document in Linearity Curve or Import it onto an existing Artboard.

Make sure the image layer is Unlocked in the Layers Tab.

Use Linearity Curve's Auto Trace tools

Once you select your image, the Auto Trace panel menu will instantly appear in the Style Tab.

You can adjust the Complexity and Contrast sliders to change the detail of your new vector image. Then, click the Auto Trace button to transform your image into vector shapes.

©️ Disney "s Micky Mouse–Vectorized with Linearity Curve"s Auto Trace feature

On the left is an example of a bitmap image of Mickey Mouse vectorized in Linearity Curve.

Save and export your vector image

Linearity Curve automatically saves your progress, and you can return to your project at any time to continue where you left off.

Auto Trace Modes for accurate automatic vectorization

Linearity Curve's Auto Trace feature is enhanced with AI to automatically convert various types of images to vectors based on the best settings.

The 4 Auto Trace Modes are:

• Sketch Mode to convert your sketches into vectors in seconds.
• Photography Mode is for turning your photos into painting-like portraits.
• Illustration Mode to vectorize your illustrations.
• Basic shapes Mode turns low-detail elements into fewer shapes.

Sketch Mode: convert sketches into vectors

Our Auto Trace feature offers Sketch Mode, a tracing mode specifically developed to trace and convert pencil sketches into crisp vector shapes.

The tracing feature analyzes the source image for ultra-precise results. You can convert technical or freehand drawings into adjustable lines and vector shapes.

Conversion of a raster image into vector shapes via Linearity Curve"s Sketch Mode

Auto Trace's precise control sliders give you the ultimate control over your vectorization settings. You can:

• Control the grouping behavior of the resulting vector shapes with the Complexity Slider.
• Lower the Complexity value to smooth the outlines and get a more abstract result.
• Increase the Complexity value to retain more details in complex images.
• Use the Contrast Slider to define the threshold at which color is defined as black or white. Adjusting the slider can result in dramatic differences in the final result's look and shadow behavior.

The image below shows the differences in image tracing results with higher and lower Complexity values.

Different settings create different results in Linearity Curve"s Sketch Mode

More options for the optimal tracing results of your sketches:

• Complexity  – A lower value will group smaller areas and vice versa. Images with a simple composition of shapes (a foreground and a simple monochromatic background, f.ex.) need a lower complexity value. Images with a complex composition of shapes (a foreground with a complex city panorama as a background, f.ex.) require a higher complexity value.
• Contrast  – This slider defines a threshold at which numeric value a color is considered black or white.
• Simplify Path – If you activate Simplify Path, fewer nodes will be created. The mode is best suited for tracing motifs with simple and uncomplicated lines. If the mode is activated, the tracing process will take less time.
• Ignore White – This feature determines whether Auto Trace converts white areas of the image into vector shapes. When Ignore White is turned on in Sketch Mode, all white areas of the source image will be erased.
• Keep Source Image – If you activate Keep Source Image, the original raster image will be kept and organized below the traced vector image in the layer hierarchy. The original raster image will be grouped with the traced vector image in the Layers Tab.
• The Simplify toggle is ideal for tracing an image with simple, uncomplicated shapes. When Simplify is toggled on, Auto Trace will create significantly fewer nodes in the resulting traced shape.

The below image shows the difference between Auto Trace used with Ignore White toggled off and on. With Ignore White toggled off, your traced image will seem to have a white background (but these are all individual vector shapes).

The Ignore White toggle switched off and then switched on in Linearity Curve

With Linearity Curve's Auto Trace, you only have to make a few slider adjustments, click once, and get a stunning vector image.

The final vector image will need minimal to no adjustment after tracing.

Photography Mode: turn photos into vector paintings

This tracing option was explicitly developed to convert photos into vector shapes. It turns any imported digital image into a painting-like vector.

The context-aware panel contains adjustable sliders and options:

• Detail Level – This slider controls the level of detail in the traced image. A higher value results in a more detailed image, while a lower value produces a cleaner image with less detail. The range for this setting is from 1 to 128.
• Color Precision – This setting determines the color precision of the traced image. A higher value results in more precise color matching, while a lower value produces less precise color differentiation. The range for this setting is from 0 to 5.
• Gradient Smoothness – This slider adjusts the number of gradient steps and the number of layers generated during tracing. A higher value increases the smoothness of gradients and the number of layers, while a lower value reduces them. The range for this setting is from 1 to 100.
• Simplify Path – If you activate Simplify Path, fewer nodes will be created. The mode is best suited for tracing motifs with simple and uncomplicated lines. If the mode is activated, the tracing process will take less time.
• Keep Source Image – If you activate Keep Source Image, the original raster image will be kept and organized below the traced vector image in the layer hierarchy. The original raster image will be grouped with the traced vector image in the Layers Tab.

After tracing, every singular shape in the newly created vector image can be adjusted by changing its size, color, and opacity.

An outline can be added as a bright Stroke color.

These adjustments can dramatically change the look of the vector shape.

Illustration Mode: create colorful flat illustrations

You can turn hand-drawn illustrations or raster images into stunning vector illustrations using Illustration Mode.

This Auto Trace accommodates artists and designers who prefer working with physical media and turning them into digital assets using the software.

Illustration Mode offers the following adjustable parameters:

• Detail Level – This slider controls the level of detail in the traced image. A higher value results in a more detailed image, while a lower value produces a cleaner image with less detail. The range for this setting is from 1 to 128.
• Color Precision – This setting determines the color precision of the traced image. A higher value results in more precise color matching, while a lower value produces less precise color differentiation. The range for this setting is from 0 to 5.
• Gradient Smoothness – This slider adjusts the number of gradient steps and the number of layers generated during tracing. A higher value increases the smoothness of gradients and the number of layers, while a lower value reduces them. The range for this setting is from 1 to 100.
• Simplify– If you activate Simplify, fewer nodes will be created. The mode is best suited for tracing motifs with simple and uncomplicated lines. If the mode is activated, the tracing process will take less time.
• Keep Source Image – If you activate Keep Source Image, the original raster image will be kept and organized below the traced vector image in the layer hierarchy. The original raster image will be grouped with the traced vector image in the Layers Tab.

Using Illustration Mode in Linearity Curve

The tracing process in Linearity Curve is swift. The Auto Trace feature menu is so simple and intuitive that you can achieve high-quality tracing results with few adjustments.

The possibilities of creating vector masterpieces with raster source images in Curve are limitless. Are you ready to try new and innovative graphic design software? Get started for free below, or check out our Pro and Org pricing plans.

Basic Shapes: generate fewer shapes to simplify the editing process

The Basic Shapes mode is designed for low-detail elements, generating fewer shapes to simplify the editing process. It is ideal for projects where simplicity and ease of manipulation are prioritized, allowing for quicker and more efficient adjustments.

When the Basic Shapes Mode is selected, you will have a menu with sliders and two buttons available that will control the following parameters:

• Detail Level – This slider controls the level of detail in the traced image. A higher value results in a more detailed image, while a lower value produces a cleaner image with less detail. The range for this setting is from 1 to 128.
• Color Precision – This setting determines the color precision of the traced image. A higher value results in more precise color matching, while a lower value produces less precise color differentiation. The range for this setting is from 0 to 5.
• Gradient Smoothness – This slider adjusts the number of gradient steps and the number of layers generated during tracing. A higher value increases the smoothness of gradients and the number of layers, while a lower value reduces them. The range for this setting is from 1 to 100.
• Simplify – If you activate Simplify, fewer nodes will be created. The mode is best suited for tracing motifs with simple and uncomplicated lines. If the mode is activated, the tracing process will take less time.
• Keep Source Image – If you activate Keep Source Image, the original raster image will be kept and organized below the traced vector image in the layer hierarchy. The original raster image will be grouped with the traced vector image in the Layers Tab.

As soon as you have adjusted the previously mentioned settings, click the Auto Trace button, and a few seconds later, the resulting vector image will be displayed.
