How to animate a logo in After Effects

By Sharné McDonald
ic-calendar icon
ic-time icon
4 minutes
Blog Page Hero Image

Want to bring your brand's logo to life with animation? It's easier than you think.

We'll take you through this process step-by-step using Adobe After Effects on a desktop computer.

Let's get started with our logo animation tutorial.

💡

Looking for some logo animation inspiration? Check out these famous animated logos for ideas.

Step 1

Start with layers

Before animating your logo design in After Effects, you need to place the different elements in layers. This will enable you to animate each logo element separately in After Effects.

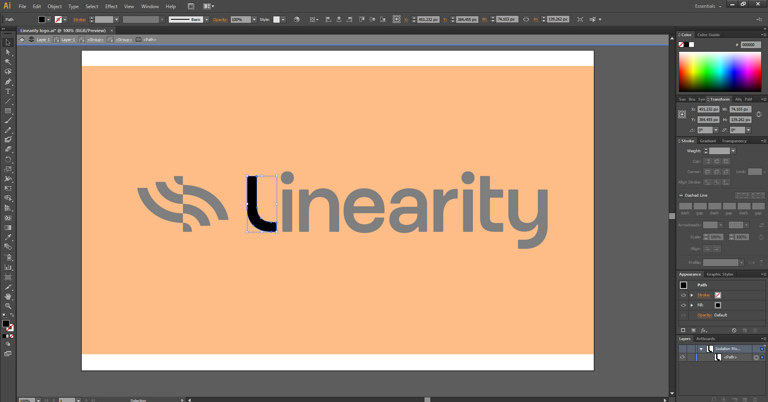

You can edit a vector version of your logo in Adobe Illustrator to separate the elements into layers.

Blog Image

You may need to Ungroup elements or cut and paste them to create a layer for each one.

Step 2

Create a new After Effects Project

Now that your static design is prepped, you can open up After Effects to create a new Project.

In the central Composition panel, click on the New Composition from Footage card. Select your layered .ai logo file.

Blog Image

Choose the Composition option in the Import Kind dropdown and click OK.

You'll see your Illustrator file added to your new After Effects Composition. Double-click on it in the Timeline at the bottom to reveal all the element layers.

Blog Image
Step 3

Select your first layer and choose an Animation Preset from the Effects & Presets panel at the top right. We chose the Fade In preset.

Blog Image

Now, add the same effect to each of your layers, staggering them one after the other in the Timeline.

This staggering effect will make each letter of the logo's wordmark appear in sequence.

Blog Image

Next, add a Linear Wipe effect to each side of the logomark to reveal the icon. Remember to move your Timeline Indicator along to get the timing right.

Once you apply an effect in After Effects, it automatically creates keyframes in the Timeline.

Blog Image

You can preview your animation any time by pressing Space Bar on your keyboard.

Adjust your Timeline as needed. For example, you can move keyframes closer together to speed up some of the element animations.

Step 4

Export your logo animation

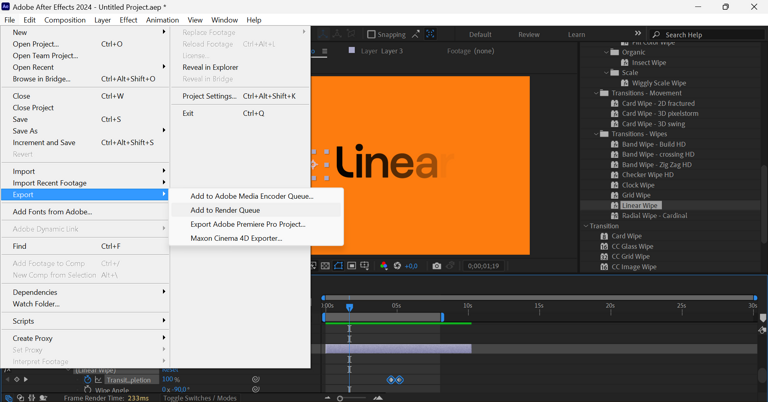

If you're happy with your animation sequence and you're ready to share the video file, go to File > Export > Add to Render Queue.

Blog Image

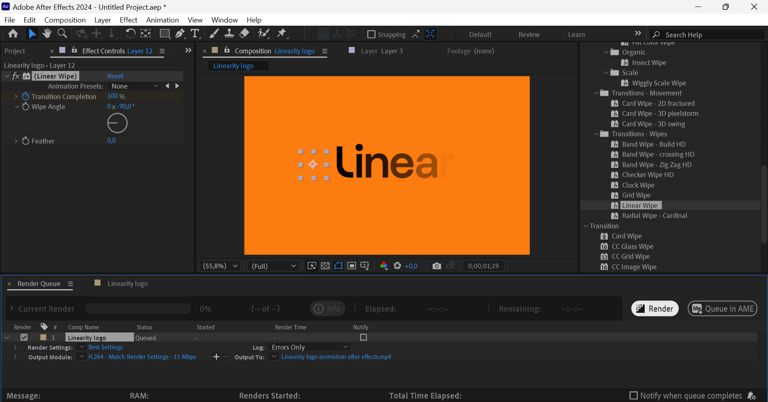

Click on the blue Not yet specified text next to Output To and choose your file location. You can also change the name of the video file here.

Next, click the Render button to export your video file.

Blog Image

Below is our final exported video made in After Effects:

💡

Want more After Effects tutorials? Learn how to animate text and use animated image masking.

Let's look at how to create a stunning logo animation using a combination of Linearity Curve and Linearity Move.

We'll show you how easy it is with our Auto Animate feature.

How to Auto Animate your logo in Linearity Move

Remember how we made layers in Adobe Illustrator before adding the logo file to your After Effects Composition? We'll follow a similar process with Linearity software.

The difference is that we"ll actually plan out our animation in Linearity Curve. Once we import it to Linearity Move, the Auto Animate feature will automatically create the animation for you.

If you haven't already downloaded Linearity's software suite, get started for free below:

Bring motion in-house

Animate marketing assets in seconds with Linearity Move.

Get Started
Blog Cta Image

We'll create our logo animation on an iPad.

Step 1

Create your animation storyboard in Linearity Curve

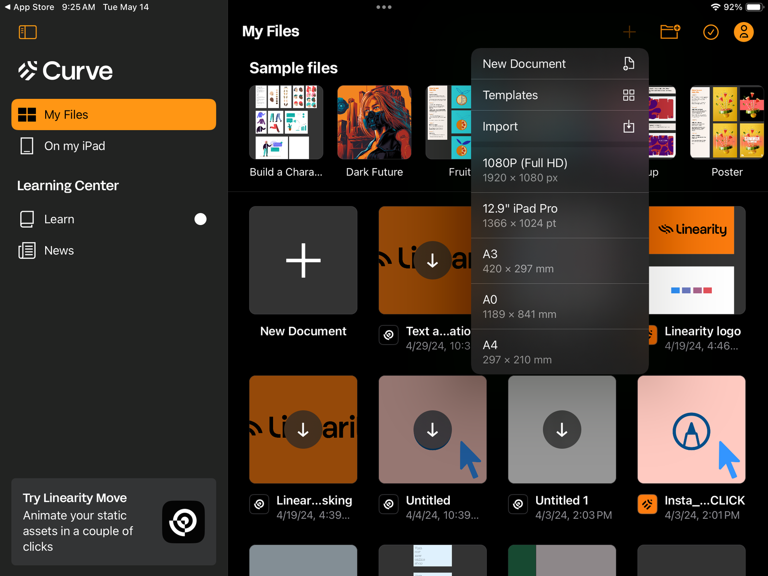

Open up Linearity Curve and Import your vector logo file by tapping on the + icon in the top right corner.

Blog Image

If you created your logo in Curve, you can create a duplicate file and rename it.

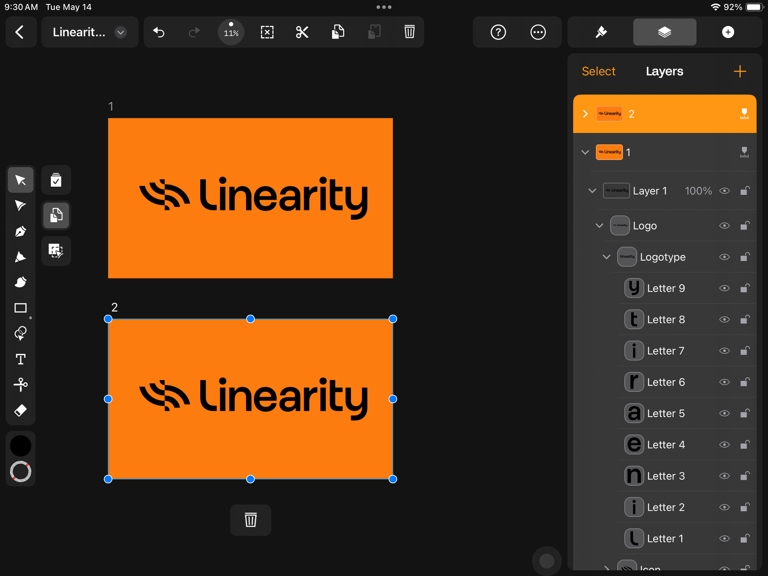

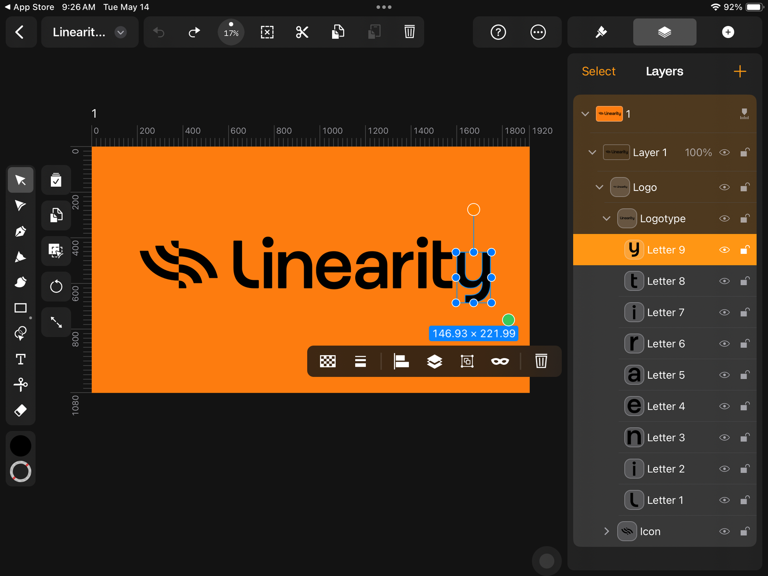

You'll see all your element layers in the Layers panel in the Inspector on the right.

Blog Image

We'll create an Artboard for each key moment in our logo animation storyboard.

Tap on the name of your Artboard at its top left border to select it, then select Duplicate Mode in the Toolbar on the left.

Drag and drop to duplicate your Artboard.

Blog Image

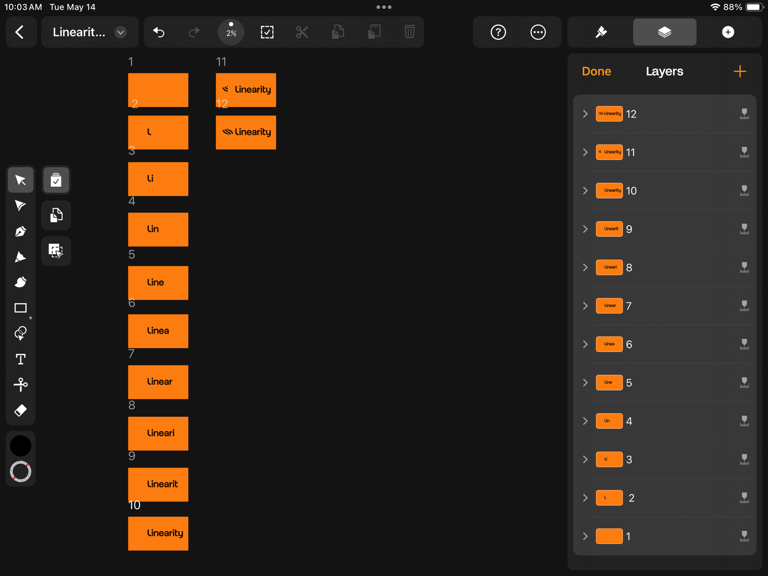

Create a few duplicates, depending on your logo animation's complexity. We created 13 Artboards—one for each element's appearance.

💡

You can delete, add, or move logo elements for each Artboard. You"re creating a storyline for Linearity Move to follow, fill in, and tween.

Blog Image

Once you're satisfied with the storyboard you've created, close Linearity Curve and open Linearity Move. Your file will autosave.

Step 2

Auto Animate your logo with Linearity Move

You'll see your Linearity Curve file in your Homescreen Gallery. Tap on the arrow to import it into Linearity Move.

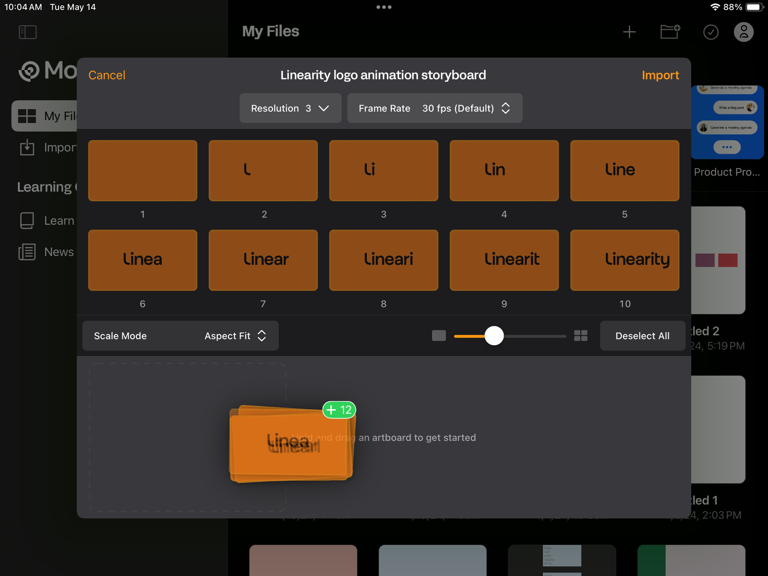

Once imported, tap on the file card to open the Scene Builder. Tap on the Select All button and drag and drop your Artboards into one Scene.

Blog Image

Tap Import at the top right corner to create your logo animation file.

To preview your Auto Animated logo, tap on the Play icon.

Notice how Linearity Move recognized all the layers from the various Artboards and automatically staggered the animations for you.

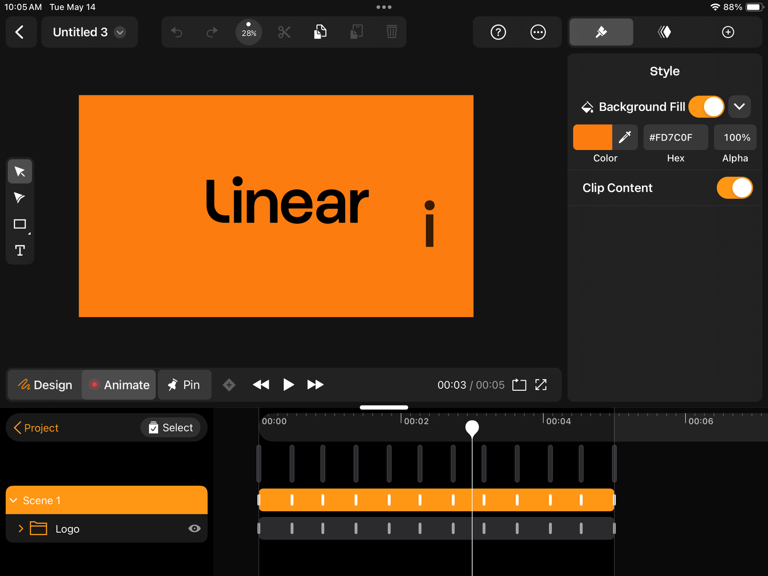

You can adjust the animations and timing in the Scene Timeline. We removed the Position keyframes so the letters would fade in one by one but not fly in.

Blog Image

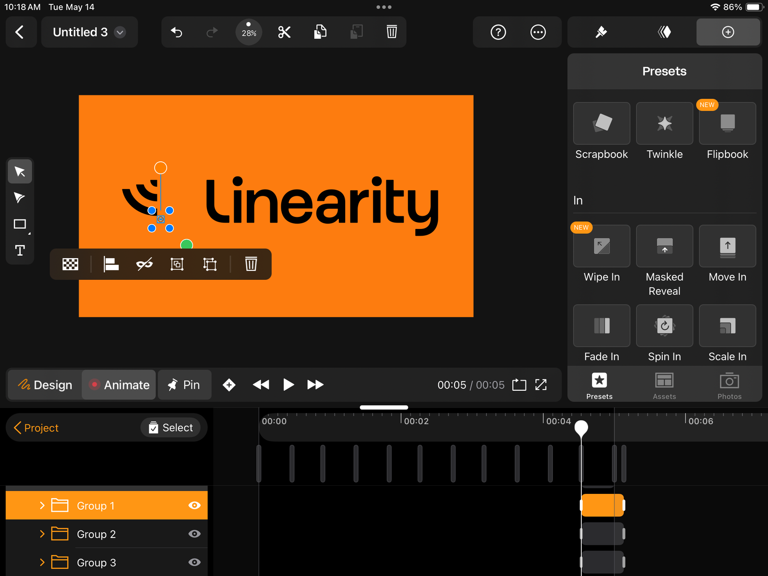

We also added the Masked Reveal Preset to each side of the logo icon, so it would appear from the center outwards.

Blog Image
Step 3

Export your logo animation

Preview your animation one more time, then head over to the File Name menu item at the top left of your screen and tap Export.

Blog Image

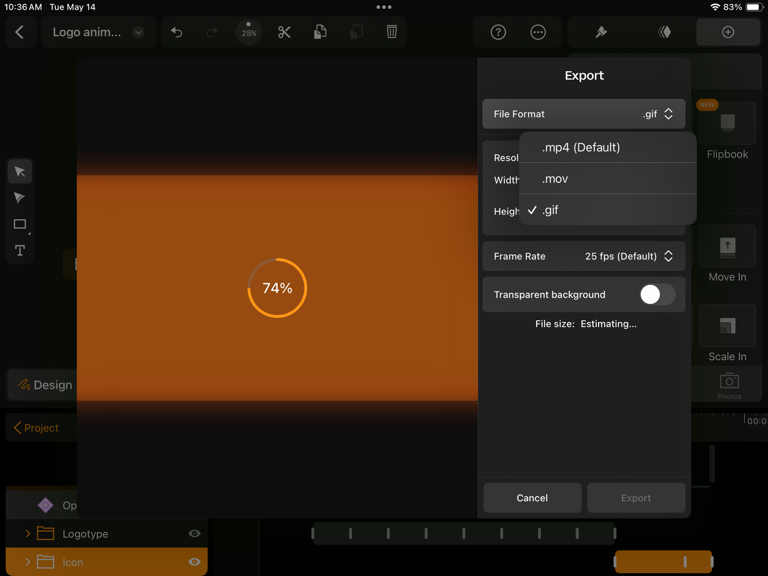

You can adjust your Export options, like the file type. We'll export our logo animation as a GIF.

Tap on the Export button and choose your file location.

Blog Image

Here's our final logo animation made with Linearity:

Blog Image
💡

Ready for a more advanced logo animation tutorial? Follow the steps in our video tutorial to create a stunning logo reveal.

Get moving with animation

This easy tutorial showed you how to create a simple logo animation in a few clicks using Adobe After Effects and Linearity Move.

For After Effects, we prepared the vector layers in Adobe Illustrator. For Linearity Move, we prepared animation Artboards in Linearity Curve.

While After Effects is considered by many as the industry standard software, the interface can be cumbersome with many hidden settings and presets. It requires training to figure out where all the proverbial knobs and switches are.

Linearity Move is a fresh take on motion graphic design. It"s equally suitable for beginners, professional designers, and marketers wanting to animate static assets.

With advanced, easy-to-use features like Auto Animate and Presets, Linearity Move is one of the best software for animating logos, social media posts, product announcements, and more.

We also offer 3,000+ free static and animated design templates to accelerate your design workflow. Try one below:

Ready to try new and innovative animation design software? Learn more about our pricing options for professionals and teams.
